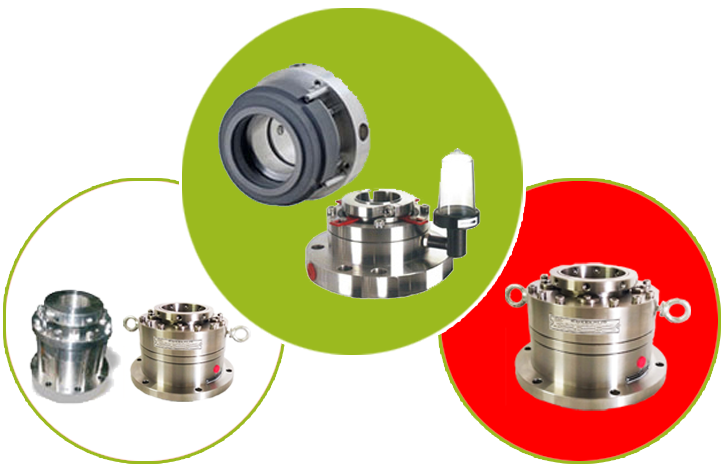

Agitator Seal



Dry Running Seal:

  • Face Seal: Carbon, Tungsten Carbide, Silicon Carbide
    Ceramic, Lecrolloy
  • Metal Parts: SS316, SS304, Hastelloy-C, Hastelloy-B, Monel, Alloy-20
  • Secondary seal: Viton®, TCV, Kalrez, FEP., PTFE, GFT
    Operating Limits
  • Pressure: Vacuum 10 to 35 bar
  • Temperature: Amb...+280 °C
  • Shaft Speed: 60 to 450 RPM. (max)
    Seal Characteristics
  • Easy to install and operate
  • Easy to replace individual seal-wear parts
  • Revers Balanced
  • Single acting
  • Outside Mounted
  • Dry Running
  • Independent of Direction of Rotation
    Applications
  • Top Entry Mixers
  • Agitators
  • Reactor Vessels
  • Corrosive and General Light Chemicals
  • Food and Pharmaceutical Prouduct
    Notes
  • STANDARDS :- As per customer's Drawings and specifications
