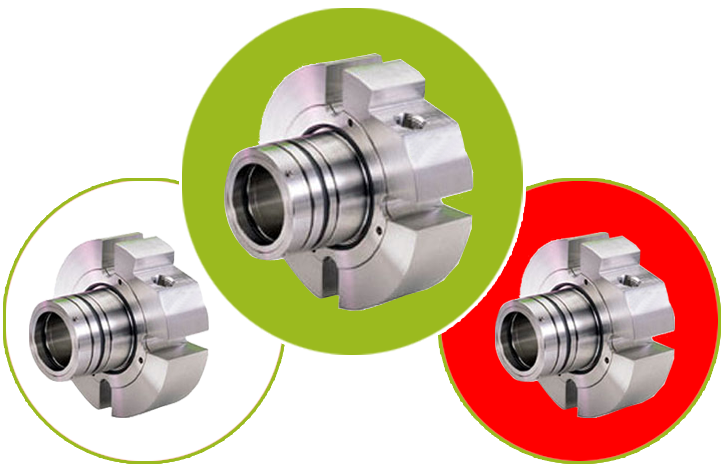

Cartridge Seal-HTS-90B33



Cartridge Seal:

  • Face Seal: Carbon, Tungsten Carbide,Silicon Carbide, SS 316, SS 304
  • Metal Parts: SS316, SS304, Hastelloy-C, Monel, Alloy-20
  • Secondary seal: Neoperene, Nitrile, EPR, TCV and Viton®
    Operating Limits
  • Pressure: 25 to. 80BAR
  • Temperature: -40... 220°C (Depends on limitation of 'O' Rings)
  • Shaft speed: Upto 3600 RPM
    Seal Characteristics
  • Easy to install and operate
  • Easy to replace individual seal-wear parts
  • Competitive price
  • Balanced
  • Single acting
  • Independent of direction of rotation
  • Inside mounted
  • Sturdy drive mechanism\Multi spring design
    Applications
  • Clinker Grinders
  • Asy Pumps
  • Pulp & Syrup Pumps
  • Sludge Pumps
  • Oil Pipeline Pumps
  • Boiler Feed Water Pumps
    Notes
  • STANDARDS :- As per customer's Drawings and specifications
  • Viton®,Kalrez® Registered trade marks of Dupont,USA
