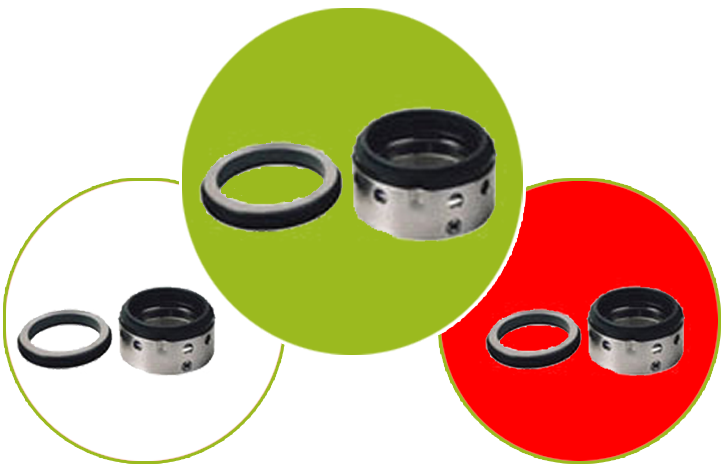

M. Spring O Ring Seal-HTS-80B

M. Spring O Ring Seal:

  • Face Seal: Carbon, Tungsten Carbide
    Silicon Carbide, Ceramic, Lecrolloy
  • Metal Parts: SS 316, SS304, Hastelloy-C, Monel, Alloy-20
  • Welded Bellows: AM 350, Hastelloy-C
  • Secondary seal: Neoperene, Nitrile, EPR, Viton®,PTFE Wedge , vition® 'O' rings.
    Operating Limits
  • Pressure: 10BAR/35BAR
  • Temperature: -45... 260°C (Depends on limitation of 'O' Rings)
  • Shaft speed: Upto 3000 RPM
    Seal Characteristics
  • Easy to install and operate
  • Easy to replace individual seal-wear parts
  • Competitive price
  • Balanced/Unbalanced
  • Single acting
  • Inside mounted
  • Independent of direction of rotation
    Applications
  • Genral Chemicals
  • Petrochemicals
  • Light hydrocarbons
    Notes
  • STANDARDS:- As per customer's Drawings and specifications.
  • Viton® Registered trade marks of Dupont,USA.
