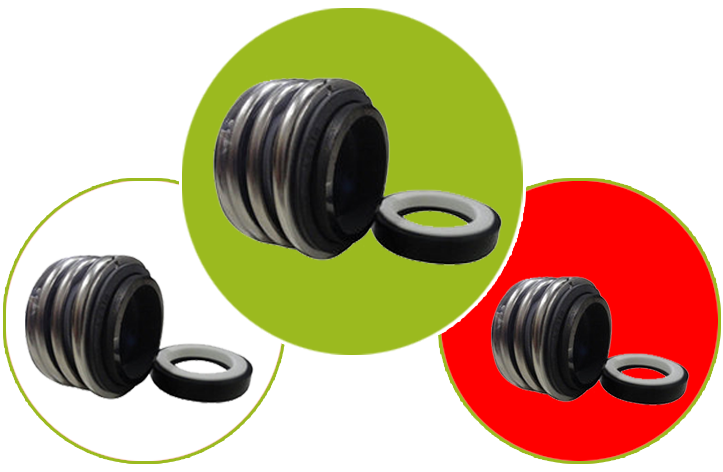

Rubber Bellow Seal-HTS-MG1

Rubber Bellow Seal:

  • Face Seal: Carbon, Silicon Carbide
    Lecrolloy,Ceramic (99.5%)
  • Metal Parts: SS 316, SS 304
  • Secondary seal: Nitrile, Viton®
    Operating Limits
  • Pressure: 12 bar/18 bar
  • Temperature: -20 … +180°C
  • Shaft speed: 3600 RPM
    Seal Characteristics
  • Easy to install and operate
  • Easy to replace individual seal-wear parts
  • Separate from the bellows assembly
  • Unbalanced
  • Single acting
  • Independent of Direction of Rotation
  • Single Helical Coil Spring
  • Torque Transmission by Spring Holder
    Applications
  • Submersible Pumps
  • Water Pumps
  • Corrosive Chemicals
  • Chemical Process Pumps
  • Mixers, Compressors, Blenders
    Notes
  • STANDARDS:- As per customer's Drawings and specifications.
