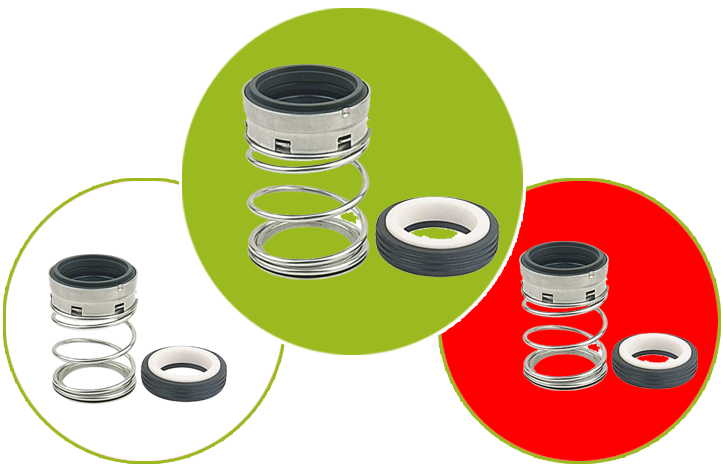

Single Spring Seal-HTS-150

Single Spring Seal:

  • Face Seal: Carbon, Lecrolloy, Silicon Carbide
    Ceramic (99.5%), Tungsten Carbide
  • Metal Parts: SS 316, SS 304
  • Secondary Seal: Neoprene, Nitrile, EPR,PTFE , viton® 'O' Rings.
    Operating Limits
  • Pressure: 1o bar /35 bar
  • Temperature: -60 … +260°C
  • Shaft speed: 3600 RPM
    Seal Characteristics
  • Easy to install and operate
  • Easy to replace individual seal-wear parts
  • Competitive price
  • Unbalanced
  • Single acting
  • Inside mounted
  • Dependent of Direction of Rotation
    Applications
  • Genral Chemicals
  • Suspended Solid Slurry
  • Crystallizing Slurry
  • Saturated Chemical Slurry
    Notes
  • STANDARDS:- As per customer's Drawings and specifications.
  • Viton® Registered trade marks of Dupont,USA.
