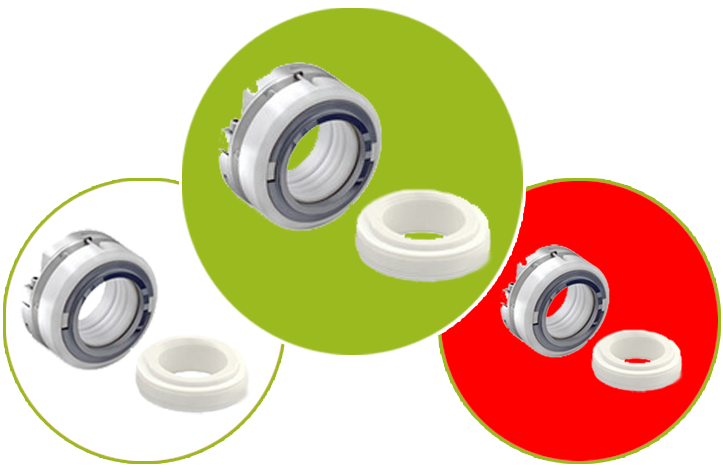

Teflon Bellow Seal-HTS-20M

Teflon Bellow Seal:

  • Face Seal: Carbon, Silicon Carbide, GFT, Ceramic
  • Metal Parts: SS 316, SS 304, Hastelloy-C
  • Secondary seal: PTFE Bellows
  • Spring:- Hastelloy-C, Teflon Coverd Spring Steel
    Operating Limits
  • Pressure: 5 BAR / 10 BAR
  • Temperature: -30.. 120°C
  • Shaft speed: 1400 RPM
    Seal Characteristics
  • Easy to install and operate
  • Easy to replace individual seal-wear parts
  • Separate from the bellows assembly
  • Single acting / Balanced
  • Single Helical Coil Springg
  • Independent of Direction of Rotation
    Applications
  • Salt Organic Compound
  • Corrosive Chemicals
    Notes
  • STANDARDS:- As per customer's Drawings and specifications.
