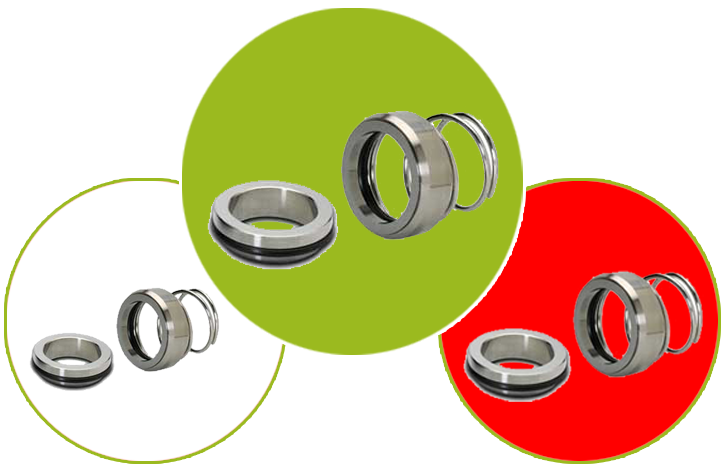

Conical Coil Spring Seal – 2U

Conical Coil Spring Seal – 2U is engineered under the firm direction of experienced quality controllers. These are designed following international industrial standard and it’s looking from the sliding face as right hand shaft rotation which needs right hand spring and vice versa.

These are extensively used in various equipment's including centrifugal pumps and other equipment with rotating shaft, handling oils, fuels, mild chemicals, water, and liquids containing of low quantity of abrasive. These can be availed in various technical specifications as per the precise demands and requirements of clients.

Besides, its seal ring faces are manufactured from carbon, SIC and TC and elastomers including viton, neoprene, EPDM, NBR and BUNA-N.

    Features:
  • Unbalanced pusher mechanical seals
  • Spring design depended on shaft rotation with central tapered spring
  • Conical single coil spring mechanical seal
  • Inside mounted
    Materials:
  • Seal Ring Faces: Cabon, SiC and TC
  • Seat Faces: NiR, Ceramic, SiC and TC
  • Elastomer: Viton, Neoprene, -EPDM, NBR and Buna-N
  • MOC: SS 316

    Operating Capabilities:
  • Shaft Dia.: 10mm to 100mm
  • Pressure: Up to 7 bar
  • Temperature: -20oC to 140oC
  • Speed: 3000 r.p.m.
    Applications
  • Sewage & Submersible pumps
  • Water pumps
  • Chemical Process Pumps
  • Circulation Pumps for central heating
    Notes
  • STANDARDS:- As per customer's Drawings and specifications.
  • Viton® Registered trade marks of Dupont,USA.
